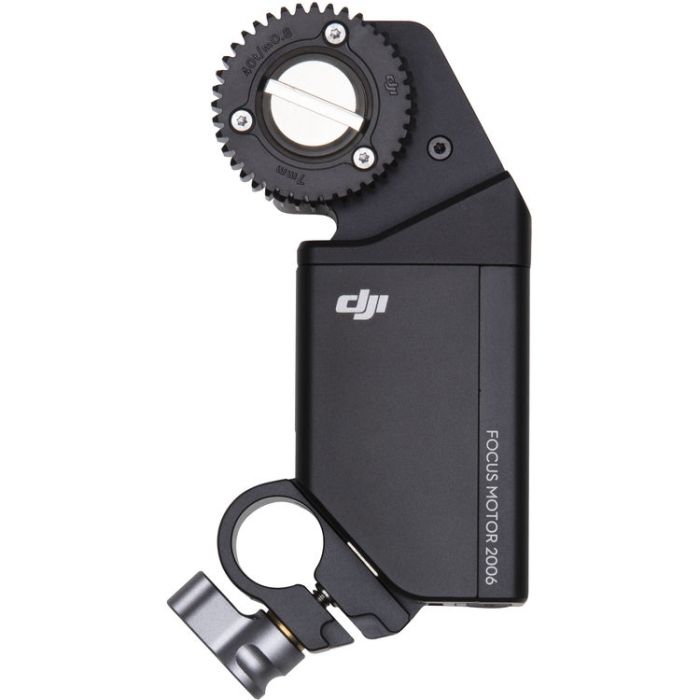

DJI Ronin-S Focus Motor

The Ronin-S Focus Motor is designed to be used with the Ronin-S Focus Wheel to control the focus, iris, and zoom.

Box Contents

Focus Motor × 1

Rod Mount × 1

15mm Rod × 2

Screw × 4

Focus Gear Strip × 2

Power Cable × 1

Focus Motor Specifications

Weight: 198 g (power cable included)

Dimensions: 110 x 53 x 30mm

Max. Torque: 0.5Nm

Max. Speed: 210 RPM

Operating Current: Free current: 25mA (12V); Stall current: 0.5A (12V)

Operating Voltage: 6-17V

Noise: 25dB

Rod Clamp Inner Diameter: 15mm

Gear: No. of teeth: 40; Module: 0.8

Operating Temperature: -20 to 55°C
