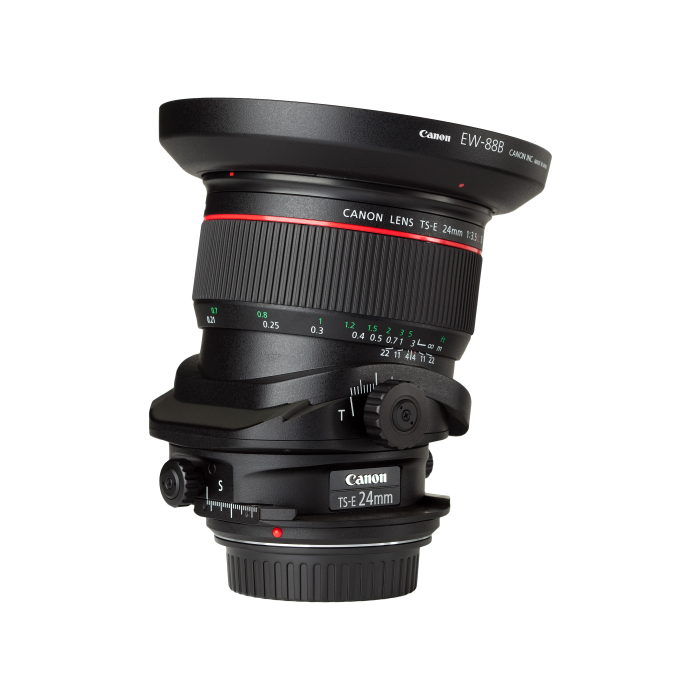

Canon EF TS-E 24mm f/3.5 L II Tilt Shift Lens

The revised Canon TS-E 24mm f/3.5L II tilt and shift lens is specifically designed for architectural photography. With a wide-angle 24mm focal length and ±8.5° of tilt available, plus ±12mm shift and ±90° of rotation on both the tilt and shift mechanisms, the TS-E 24 mm f/3.5L II offers exceptional flexibility. It also feature locks on the tilt and shift mechanisms to avoid unwanted movements.

Key Features: Canon TS-E 24mm f3.5L II Lens

    Tilt and Shift lens
    Wide 24mm focal length for landscapes and architecture
    Large range of movement: ±8.5° Tilt and ±12mm Shift
    Shift mechanism rotates +/-90° allowing shift in any direction
    Tilt mechanism rotates +/-90° allowing tilt in any direction relative to the shift
    Aspherical and UD lens elements minimise chromatic aberration
    Sub wavelength structure and super spectra coatings minimise ghosting and flare
    Circular aperture for creative, blurred highlights


Expanding the possibilities for tilt and shift photography
The TS-E 24 mm f/3.5L II allows tilt and shift movements to be made independently of each other. This means perspective and depth of field can be controlled separately, vastly enhancing lens flexibility.

Widest range of movement
A wide-angle focal length of 24mm, combined with ±8.5° of tilt and ±12mm shift makes the TS-E 24mm f/3.5L II a versatile optic. Furthermore, ±90° of rotation on both the tilt and the shift mechanisms is available. The lens also features locks on the tilt and shift mechanisms to ensure unwanted movements are avoided.

High precision lens elements
A high-precision, large-diameter moulded glass aspherical lens element gives outstanding edge-to-edge resolution and low distortion. Chromatic aberration – common in wide-angle shooting – is combated by four UD (ultra-low-dispersion) elements.

Subwavelength structure coating
Designed for use in digital photography, Canon’s patented lens element coating helps minimise the ghosting and flare caused by internal reflection and helps to deliver crisp, clear images.

Robust build quality
Canon L-series lenses are built to withstand regular use in the most testing environments. Weather and dust seals provide added protection. A lens hood and pouch are also included.

Lead-free optics
Environmentally friendly lead-free glass is used throughout the construction of the TS-E 24mm f/3.5L II.

SPECIFICATIONS
Aperture Blades     8
Colour     Black
Enlargement Ratio     1:2.9
Filter Thread Size (mm)     82
Focal Length – Tele (mm)     24
Focal Length – Wide (mm)     24
Hood Model     EW88B
Included Accessories     Lens hood, Lens case
Lens Mount     Canon EF
Lens Type     Tilt and Shift
Manual Focus Switching     Yes
Maximum Aperture – Tele     3.5
Maximum Aperture – Wide     3.5
Minimum Aperture     22
Number of Lens Elements     11
Number of Lens Groups     9
Sensor Format     Full Frame
Size (mm)     78 x 86.7 mm
Weight (g)     570
MF switch     Yes
Minimum Focus Distance (m)     0.3
